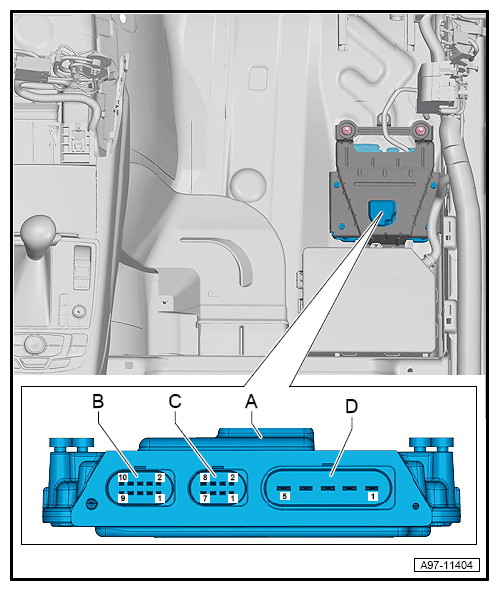

Active Steering Control Module -J792-, Connector Views, RHD

10-Pin Connector -T10c-/8-Pin Connector -T8m-/5-Pin Connector -T5k-

1. B - 10-Pin Connector -T10c-, black
2. C - 8-Pin Connector -T8m-, black
3. D - 5-Pin Connector -T5k-, black

Courtesy of AUDI OF AMERICA, LLC
