Airbag Control Module J234
>>
Airbag Control Module -J234-, Connector Views
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

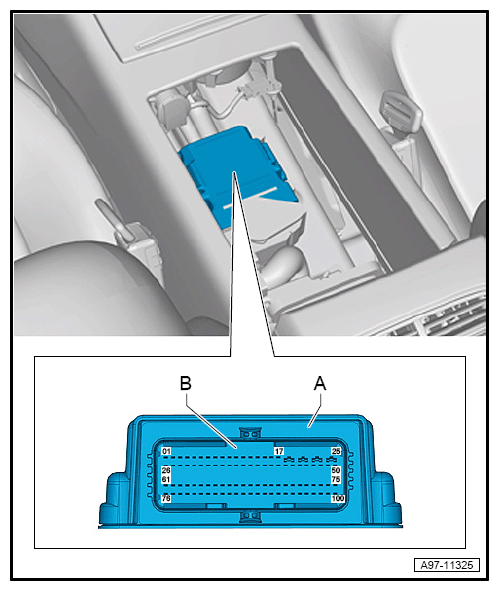

Airbag Control Module -J234-, Connector Views
100-Pin Connector -T100-
B - 100-Pin Connector -T100-, yellow
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
