Coolant Fan Control Module -J293-/Coolant Fan Control (FC) Control Module 2 -J671-, Connector Views

  1. 4-Pin Connector -T4bg-/4-Pin Connector -T4bf-
    1. 1 - 4-Pin Connector -T4bg-, black
    2. 1 - 4-Pin Connector -T4bf-, black

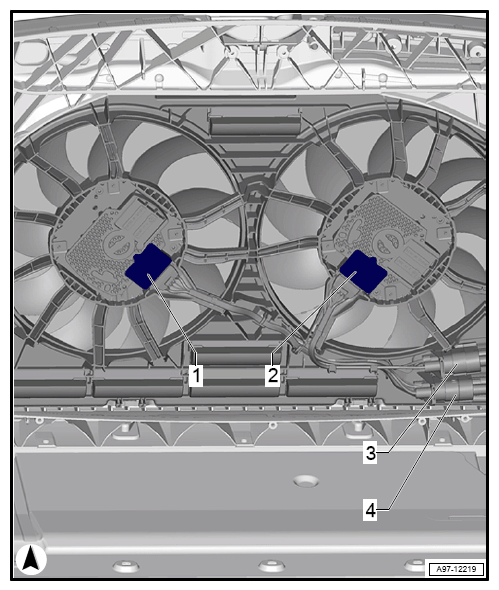

G12768152Courtesy of AUDI OF AMERICA, LLC
