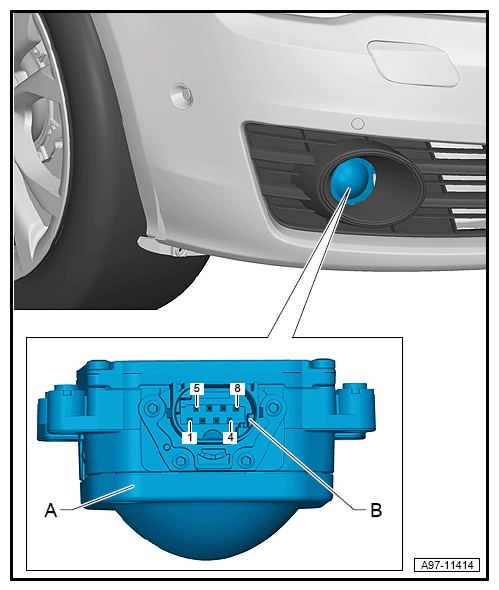

Distance Regulation Module -J428-, Connector Views

8-Pin Connector -T8k-

  1. B - 8-Pin Connector -T8k-, black
G12768122Courtesy of AUDI OF AMERICA, LLC
