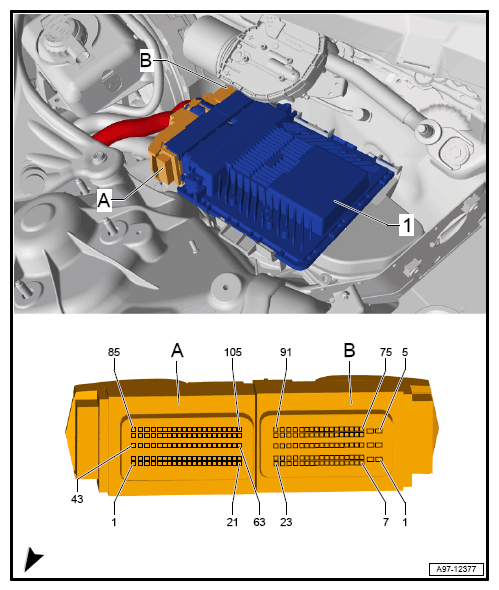

Engine Control Module (ECM) -J623-, Connector Views, 196-Pin

105-Pin Connector -T105-/91-Pin Connector -T91-

  1. 105-Pin Connector -T105-, black
  2. 91-Pin Connector -T91-, black
G12768112Courtesy of AUDI OF AMERICA, LLC
