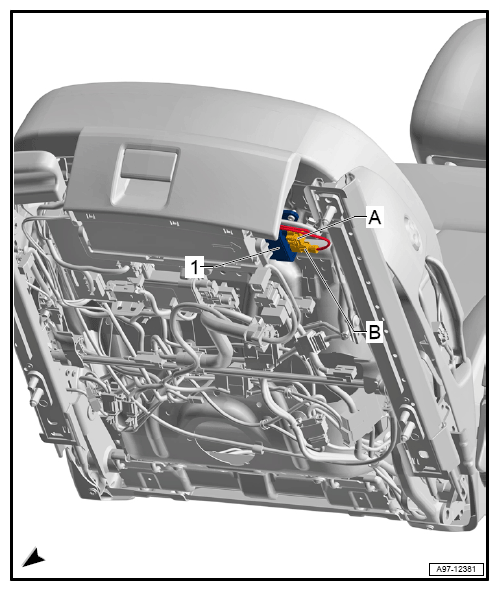

Passenger Occupant Detection System Control Module -J706-, Connector Views

3-Pin Connector -T3-

Courtesy of AUDI OF AMERICA, LLC

T3 (A)	Designation
1	Terminal 30, from B282 Positive connection 6 (15a) in main wiring harness Fuse Panel B
2	Airbag Control Module J234
3	Terminal 31, to 312 Ground Connection 2 (in airbag wiring harness) 475 Airbag Ground Connection (in main wiring harness) Airbag Control Module J234
