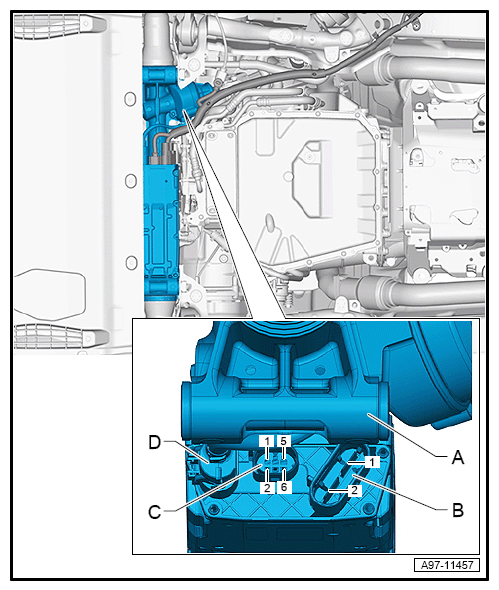

Power Steering Module -J500-, Connector Views

Double Connector -T2fa-/6-Pin Connector -T6ak-

  1. B - Double Connector -T2fa-, black
  2. C - 6-Pin Connector -T6ak-, black
  3. D - Connector Sensor
G12768135Courtesy of AUDI OF AMERICA, LLC
