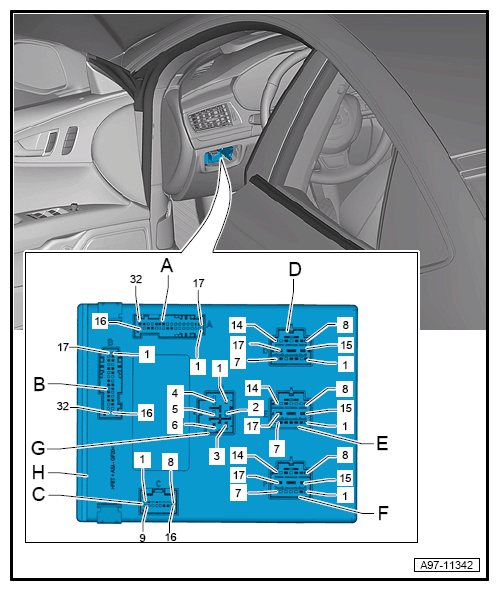

Vehicle Electrical System Control Module -J519-, LHD

  1. 32-Pin Connector -T32c-, grey
  2. 32-Pin Connector -T32a-, black
  3. 16-Pin Connector -T16c-, brown
  4. 17-Pin Connector -T17d-, black
  5. 17-Pin Connector -T17c-, brown
  6. 17-Pin Connector -T17e-, red
  7. 6-Pin Connector -T6d-, grey
  8. Vehicle Electrical System Control Module -J519-
G12768108Courtesy of AUDI OF AMERICA, LLC
