Wiper Motor Control Module -J400-, Connector Views

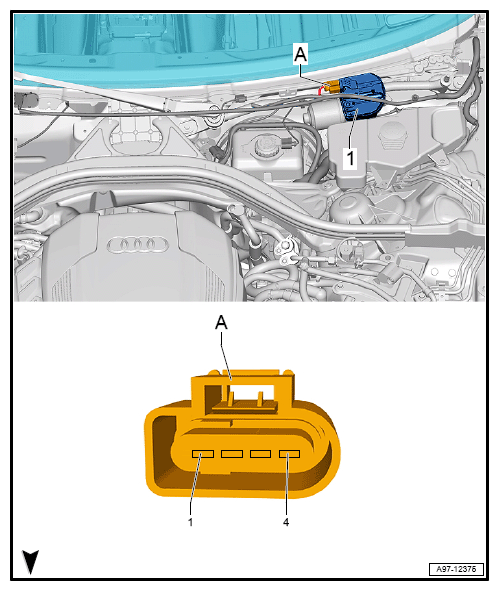

4-Pin Connector -T4t-
| T4t (A) | Designation |
|---|---|
| 1 (lefthand drive) | Terminal 30, from Fuse Panel B SB |
| 1 (righthand drive) | LIN-Bus B698 LIN-Bus Connection 3 (in main wiring harness) Vehicle Electrical System Control Module J519 |
| 2 (lefthanddrive) | Terminal 31, to 369 Ground Connection 4 (in main wiring harness) 44 Ground Connection (on left lower A-pillar) |
| 2 (righthanddrive) | |
| 3 (lefthanddrive) | |
| 3 (righthand drive) | Terminal 31, to 369 Ground Connection 4 (in main wiring harness) 44 Ground Connection (on left lower A-pillar) |
| 4 (lefthand drive) | LIN-Bus B698 LIN-Bus Connection 3 (in main wiring harness) Vehicle Electrical System Control Module J519 |
| 4 (righthand drive) | Terminal 30, from Fuse Panel B SB |
