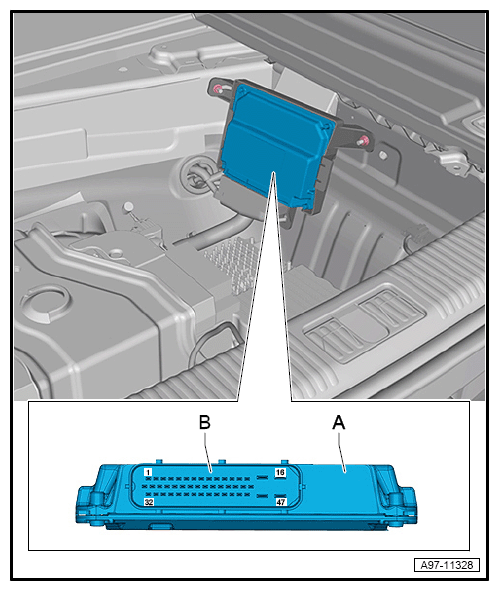

All Wheel Drive Control Module -J492-, Connector Views

  1. 47-Pin Connector -T47a-
  2. B - 47-Pin Connector -T47a-, black
G12768225Courtesy of AUDI OF AMERICA, LLC
