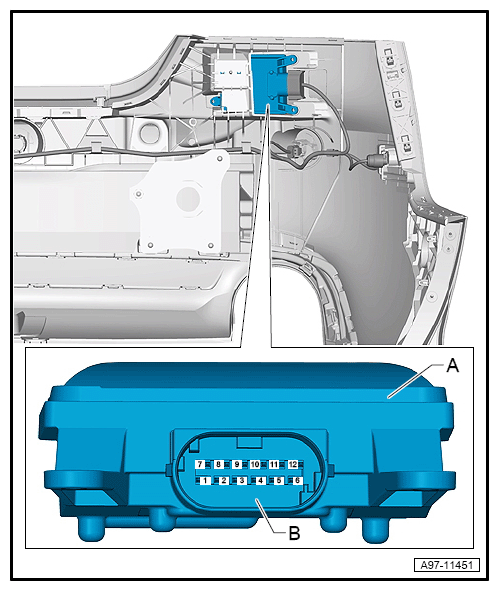

Lane Change Assistance Control Module -J769-, Connector Views

  1. 12-Pin Connector -T12t-
    1. B - 12-Pin Connector -T12t-, black
G12768247Courtesy of AUDI OF AMERICA, LLC
