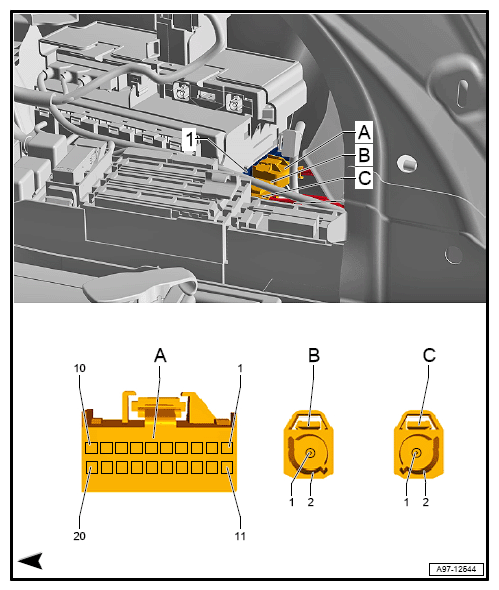

Rear View Camera System Control Module -J772-, Connector Views, My 2015
- 20-Pin Connector -T20l-/Double Connector -T2dg-/Double
Connector -T2df-
| T20l (A) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | |
| 4 | |
| 5 | |
| 6 | |
| 7 | |
| 8 | |
| 9 | Rear View Camera R189 |
| 10 | Terminal 30, from Fuse Carrier 3 ST3 in Fuse panel F SF |
| 11 | CAN-Bus Instrument Cluster. Low to Wiring junction for instrument cluster CAN-BUS, LOW TV40 |
| 12 | CAN-Bus Instrument Cluster, High to Wiring junction for instrument cluster CAN-Bus, High TV36 |
| 13 | |
| 14 | |
| 15 | |
| 16 | |
| 17 | |
| 18 | |
| 13 | Rear View Camera R189 |
| 20 | Terminal 31, to 51 Ground Connection (in right luggage compartment) |
