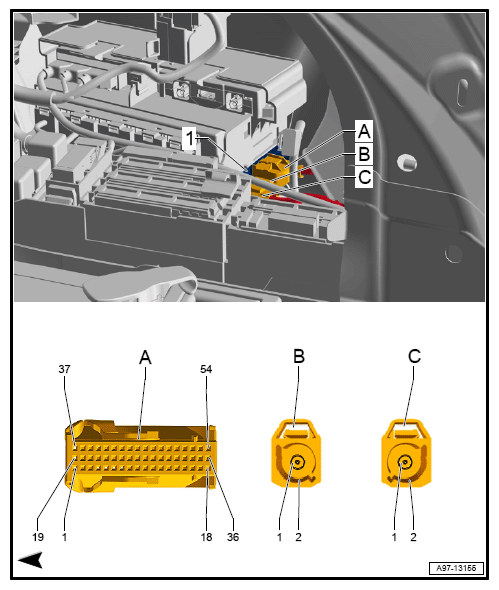

Rear View Camera System Control Module -J772-, Location, Through My 2014
In right luggage compartment, behind side panel trim.
- 1 - Rear View Camera System Control Module -J772-
- A - 54-Pin Connector -T54a-
- B - Double Connector -T2df-, green,
- C - Double Connector -T2dg-, grey
 Courtesy of AUDI OF AMERICA, LLC
|
