Roof Shade Control Module -J394-, Connector Views

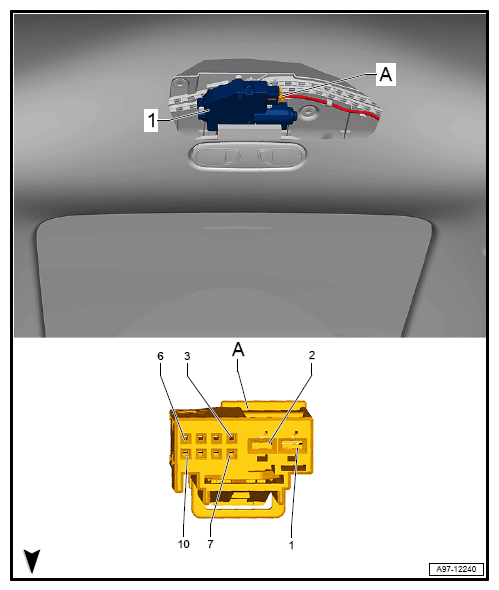

- 10-Pin Connector -T10ar-
| T10ar (A) | Designation |
|---|---|
| 1 | LIN-Bus B577 LIN-Bus Connection (in roof wiring harness) B699 LIN-Bus Connection 4 (in main wiring harness) Comfort System Central Control Module J393 |
| 2 | Protected by copyright Cop |
| 3 | |
| 4 | Bridge to pin 8 |
| 5 | Folding Sunroof Button 2 E585 |
| 6 | |
| 7 | |
| 8 | Bridge to pin 4 |
| 9 | Terminal 31, to 178 Ground Connection (in sunroof wiring harness) 369 Ground Connection 4 (in main wiring harness) 44 Ground Connection (on left lower A-pillar) |
| 10 | Terminal 30, from Fuse Panel B SB |
