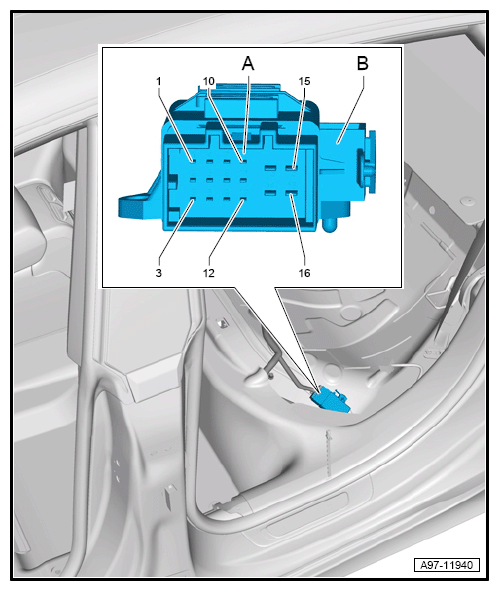

Seat Heating Control Module -J882-, Connector Views

  1. 16-Pin Connector -T16d-
  2. A - 16-Pin Connector -T16d-, black
G12768259Courtesy of AUDI OF AMERICA, LLC
