Camshaft Position Sensor 2, Checking: Notes
The following procedure is used to diagnose Camshaft Position (CMP) Sensor 2 -G163- which is controlled by Engine Control Module - J623-.
Use only gold-plated when servicing the electrical harness connector terminals of the Camshaft Position (CMP) Sensor 2 -G163-.
Special tools and workshop equipment required
- multimeter.
- Wiring diagram.
- Diode test lamp.
Test requirements
- The Engine Control Module - J623- fuses OK.
- Battery voltage at least 12.5 volts.
- All electrical consumers such as, lights and rear window defroster, switched OFF.
- Vehicles with automatic transmission, shift selector lever into position "P" or "N".
- A/C switched OFF.
- Ground (GND) connections between engine/transmission/chassis OK.
- Ignition switched OFF.
Test procedure
-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK .
-- Remove the engine cover with air filter. Refer to appropriate Service Information.

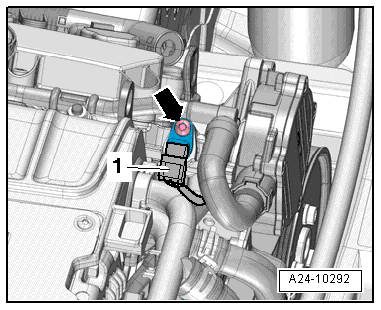

-- Disconnect the Camshaft position sensor 2 -G163- electrical harness connector -1-.
-- Switch the ignition ON.
-- Using a Multimeter, Check the Camshaft position sensor 2 -G163- electrical harness connector terminals 1 to 3 for voltage.
Specified value: near 5.0 V.
-- Switch the ignition OFF.
Continue test according to the following table:
| Value | Cause | Test |
|---|---|---|
| If the specified value was not obtained: | Open or shorted circuit | CAMSHAFT POSITION SENSOR 2, CHECKING => Checking wiring |
| If the specified value was obtained: | Check reference signal circuit | CAMSHAFT POSITION SENSOR 2, CHECKING => Checking wiring |
