Engine Temperature Control Temperature Sensor
Use only gold-plated terminals when servicing terminals in the electrical harness connector of the Engine Temperature Control Temperature Sensor -G694-.
Special tools and workshop equipment required
- Multimeter.
- Wiring diagram.
Test requirements
- The Engine Control Module - J623- fuses OK.
- Battery voltage at least 12.5 volts.
- All electrical consumers such as, lights and rear window defroster, switched OFF.
- Vehicles with automatic transmission, shift selector lever into position "P" or "N".
- A/C switched OFF.
- Ground (GND) connections between engine/transmission/chassis OK.
- Ignition switched OFF.
Checking internal resistance
-- Remove the right lower section of the intake manifold. Refer to appropriate service information

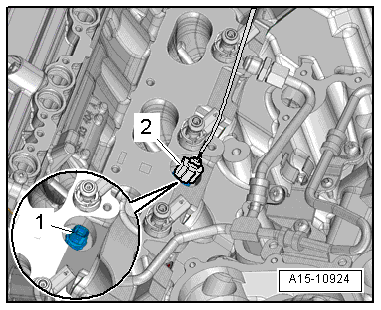

-- Disconnect the Engine temperature control sensor -G694- electrical harness connector. -2-
-- Using a Multimeter, check the Engine temperature control sensor -G694- terminals 1 to 2 for resistance.
Specified value: 050Ω to 10K Ω
If the specified value was not obtained:
-- Replace the Engine temperature control sensor -G694-. Refer to appropriate Service Information.
-- Go to Final procedures.
If the specified value was obtained:
Checking wiring
-- Remove the Engine Control Module -J623-. Refer to appropriate Service Information.
-- Using a Multimeter, check the Engine temperature control sensor -G694- electrical harness connector terminals to the Engine Control Module -J623- electrical harness connector T94 terminals for an open circuit.
| Engine temperature control sensor -G694- electrical harness connector terminals: | Engine Control Module -J623- electrical connector T94 terminals: |
|---|---|
| 1 | 38 |
| 2 | 37 |
Specified value: 1.5 Ω Max.
If the specified value was not obtained:
-- Check the wiring for a short circuit to Battery voltage or an open circuit.
-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.
-- If necessary, repair the faulty wiring connection.
-- Go to Final procedures.
If the specified value was obtained:
-- Replace the Engine Control Module - J623 -. Refer to the appropriate Service Information.
Final procedures
-- Reinstall the engine cover with air filter, if necessary. Refer to the appropriate Service Information.
-- After the repair work, the following work steps must be performed in the following sequence:
- Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
- If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
- If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
