Information For Fresh Air Intake
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

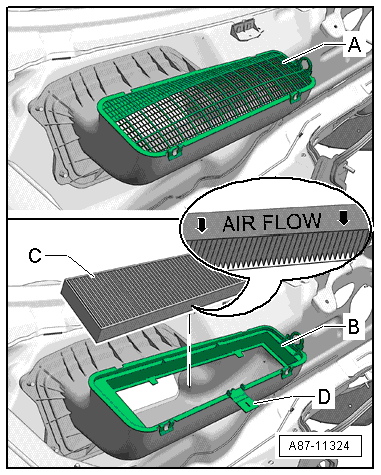

Depending on the version, for some countries with high dust levels (for example China), a dust filter -C- is installed in the filter mount -B- instead of the grille -A-. The dust filter -C- prevents pollen and sand from getting sucked into the Fresh Air Blower -V2-. Allocation.
Make sure when removing the dust filter -C- that dirt does not fall into the A/C intake shroud.
The dust filter -C- is held in the filter mount -B- with the tab -D-.
Note the replacement interval for the dust filter -C-. Refer to the Maintenance Table.
Clean the air intake shroud and the area around the dust filter -C- in the plenum chamber before installing a new filter.
Pay attention to the air flow direction -arrows- when installing the dust filter -C-.
