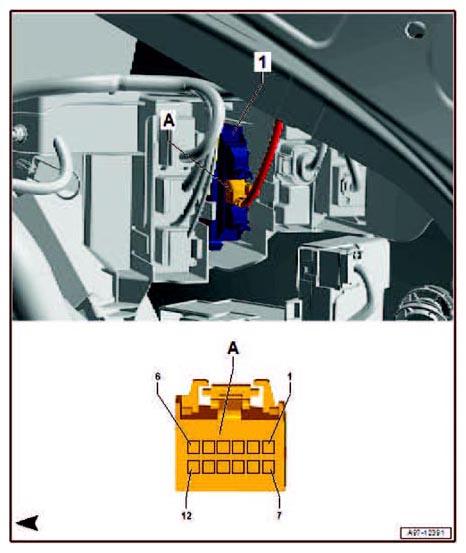

Vehicle positioning system interface control module Connector End View (J843, T12o)
| 1 | Vehicle positioning system interface control module -J843- |
| A | 12-Pin Connector -T12o-, brown |
| 1 | |
| 2 | |
| 3 | Terminal 30, from Fuse Panel F -SF- |
| 4 | |
| 5 | |
| 6 | Terminal 31, to (386) Ground Connection 21 (in main wiring harness) (51) Ground Connection (in right luggage compartment) |
| 7 | Comfort System CAN-Bus High Wiring junction for convenience CAN bus, High -TV34- |
| 8 | Comfort System CAN-Bus Low Wiring junction for convenience CAN bus, Low -TV38- |
| 9 | Comfort System Central Control Module -J393- |
| 10 | Engine Control Module (ECM) -J623- |
| 11 | |
| 12 |
