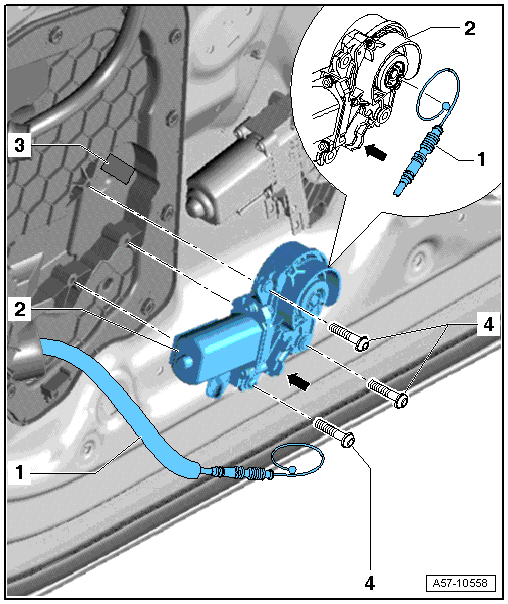

Closing Assist Motor, Removing And Installing

-- Remove the door trim panel, refer to FRONT DOOR TRIM .

-- Disconnect the connector from the motor.

-- Remove the bolts from the motor.

-- Guide the release cable out of the cable winder.

-- When installing, first insert the cable end into the cable winder.

-- Place the cable 360° inside the groove in the cable winder.

-- Install the cable -arrows- into the motor.

-- Tighten the motor.

Tightening Specifications

• OVERVIEW - DOOR HANDLE AND DOOR LOCK, CLOSING ASSIST MOTOR .
