Comfort System Central Control Module Connector End View (J393, T17d, T32d, T17e, T32e, T32c, T2a, R47)

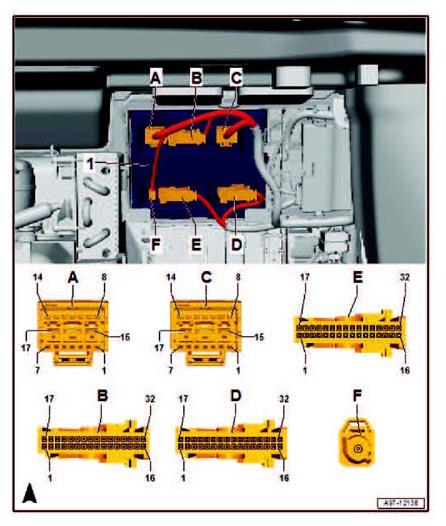

Fig 1: Comfort System Central Control Module Connector End View (J393, T17d, T32d, T17e, T32e, T32c, T2a, R47)
| 1 | Comfort System Central Control Module -J393- |
| A | 17-Pin Connector -T17d-, black |
| B | 32-Pin Connector -T32d-, black |
| C | 17-Pin Connector -T17e-, brown |
| D | 32-Pin Connector -T32e-, blue |
| E | 32-Pin Connector -T32c-, grey |
| F | Double Connector -T2a-, bluegrey, Central Locking and Anti-Theft Alarm System Antenna -R47- |
| -T32c-(E) | Designation |
|---|---|
| 1 | |
| 2 | B335 Connection 1 (54) in main wiring harness |
| 3 | Access/Start Authorization Switch -E415-, through June 2010 Rear Lid Lock Cylinder Unlock Button -F248- |
| 4 | Trunk Lock/Alarm/Central Locking Switch -F124- |
| 5 | Engine Control Module (ECM) -J623- |
| 6 | |
| 7 | |
| 8 | |
| 9 | |
| 10 | |
| 11 | Access/Start Authorization Switch -E415-, through June 2010 |
| 12 | Access/Start Authorization Switch -E415-, through June 2010 Access/Start Authorization Button -E408-, from July 2010 |
| 13 | Access/Start Authorization Switch -E415-, through June 2010 Access/Start Authorization Button -E408-, from July 2010 |
| 14 | |
| 15 | Electronic Steering Column Lock Control Module -J764- |
| 16 | Power Supply Relay (terminal 15) -J329- |
| 17 | |
| 18 | High-mount Brake Light -M25- |
| 19 | |
| 20 | Access/Start Authorization Switch -E415-, through June 2010 Access/Start Authorization Button -E408-, from July 2010 |
| 21 | |
| 22 | |
| 23 | |
| 24 | |
| 25 | |
| 26 | Driver's Door Control Module -J386-, only High-Voltage models |
| 27 | |
| 28 | E26 Connection (selector lever P/N) (in Motronic wiring harness) |
| 29 | |
| 30 | |
| 31 | |
| 32 |
| -T32d- (B) | Designation | -T32d- (B) | Designation | -T17d- (A) | Designation |
|---|---|---|---|---|---|
| 1 | 17 | LIN-Bus | 1 | Right Back-Up Lamp -M17- Right Back-Up Lamp -M17-, only USA |
|
| 2 | 18 | LIN-Bus, rear lid opening control module -J938- | 2 | Rear Lid Closing Assist Motor -V382- | |
| 3 | Access/Start Authorization Switch -E415- | 19 | Comfort System CAN-Bus High Wiring junction for convenience CAN bus, High -TV34- | 3 | |
| 4 | Rear Window Defogger Relay -J9- | 20 | Comfort System CAN-Bus Low Wiring junction for convenience CAN but, Low -TV38- | 4 | Rear Lid Closing Assist Motor -V382- |
| 5 | 21 | 5 | Rear Lid Central Locking System Motor -V53- | ||
| 6 | 22 | 6 | Fuel Tank Lid Unlock Motor -V155- | ||
| 7 | 23 | 7 | Fuel Tank Lid Unlock Motor -V155- | ||
| 8 | 24 | 8 | Right Taillight Lamp 2 -M50-Right brake lamp/turn signal/tail lamp bulb 2 -M73- | ||
| 9 | 25 | 9 | Left tail lamp bulb -M4-Left brake lamp/turn signal/tail lamp bulb -M69-, only USA | ||
| 10 | 26 | 10 | Right Brake Lamp 2 -M87-Right Brake/Turn Signal Lamp 2 -M85-, only USA | ||
| 11 | 27 | 11 | Right Rear Fog Lamp -L47-Right Rear Fog Lamp -L47- | ||
| 12 | 28 | 12 | Left Rear Turn Signal Lamp 2 -M80- | ||
| 13 | 29 | 13 | |||
| 14 | License Plate Light -X- | 30 | Right Rear Turn Signal Lamp -M8- Right Rear Side Marker Lamp -M38-, only USA | 14 | |
| 15 | Sockets Relay -J807- | 31 | Left Rear Turn Signal Lamp -M6-Left Rear Side Marker Lamp -M37-, only USA | 15 | Terminal 30, from Fuse Panel F -SF- |
| 16 | Alarm Horn -H12- | 32 | LIN-Bus Heated Windshield Control Module -J505-, roof electronics control module -J528-, Anti-Theft Alarm System Sensor -G578- |
16 | Terminal 30, from Fuse Panel F -SF- |
| 17 | Terminal 31, to 391 Ground Connection 26 (in main wiring harness) 675 Ground Connection 2 (in right luggage compartment) |
| -T32e- (B) | Designation | -T32e- (B) | Designation | -T17e- (A) | Designation |
|---|---|---|---|---|---|
| 1 | Access/Start Authorization Button -E408-, through June 2010 | 17 | 1 | Rear Window Shade Motor -V91- | |
| 2 | 18 | 2 | Rear Window Shade Motor -V91- | ||
| 3 | Access/Start Authorization Button -E408-, through June 2010 | 19 | 3 | ||
| 4 | 20 | Rear Lid Opening Assist Unlock Stop Switch -F332- | 4 | ||
| 5 | Rear Lid Closing Assist Lock Stop Switch -F333- | 21 | 5 | Left Rear Fog Lamp -L46- Left Rear Fog Lamp -L46-, only USA |
|
| 6 | 22 | 6 | Left Brake Lamp -M9- Left Brake/Turn Signal Lamp -M56-, only USA |
||
| 7 | Luggage Compartment Access/Start Authorization Antenna -R137- | 23 | 7 | ||
| 8 | Luggage Compartment Access/Start Authorization Antenna -R137- | 24 | 8 | B447 Luggage Compartment Light Connection (in main wiring harness) | |
| 9 | Right Access/Start Authorization Antenna -R201- | 25 | 9 | Left Taillight Lamp 2 -M49- Left brake lamp/turn signal/tail lamp bulb 2 -M72-, only USA |
|
| 10 | Right Access/Start Authorization Antenna -R201- | 26 | 10 | Right tail lamp bulb -M2- Right brake lamp/turn signal/tail lamp bulb -M70-, only USA |
|
| 11 | Left Access/Start Authorization Antenna -R200- | 27 | 11 | Left Brake Lamp 2 -M86- Left Brake/Turn Signal Lamp 2 -M84-, only USA |
|
| 12 | Left Access/Start Authorization Antenna -R200- | 28 | 12 | Right brake lamp bulb -M10- Right Brake/Turn Signal Lamp -M57-, only USA |
|
| 13 | Interior Access/Start Authorization Antenna 2-R139- | 29 | Right Rear Outside Door Handle Touch Sensor -G418- | 13 | Right Rear Turn Signal Lamp 2 -M81- |
| 14 | Interior Access/Start Authorization Antenna 2 -R139- | 30 | Right Front Outside Door Handle Touch Sensor -G606- | 14 | B479 Connection 15 (in main wiring harness) |
| 15 | Interior Access/Start Authorization Antenna 1 -R138- | 31 | Left Rear Outside Door Handle Touch Sensor -G417- | 15 | Electronic Steering Column Lock Control Module -J764- |
| 16 | Interior Access/Start Authorization Antenna 1 -R138- | 32 | Left Front Outside Door Handle Touch Sensor -G605- | 16 | Terminal 30, from Fuse Panel F -SF- |
| 17 | Terminal 31, to 391 Ground Connection 26 (in main wiring harness) 675 Ground Connection 2 (in right luggage compartment) |
