Comfort System Central Control Module Connector End View (J393, T32e, T32c, T2a, T17d, T32d, T17e)

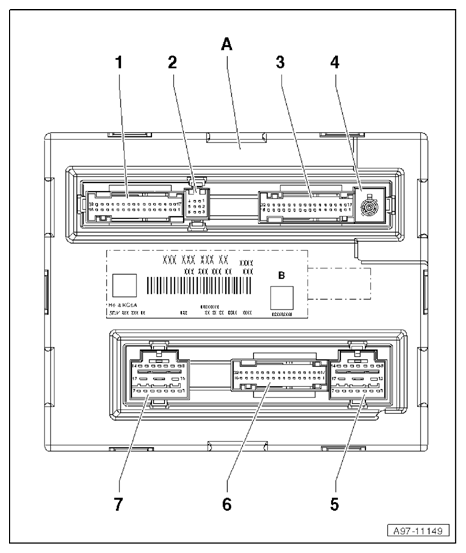

Fig 1: Comfort System Central Control Module Connector End View (J393, T32e, T32c, T2a, T17d, T32d, T17e)

Courtesy of AUDI OF AMERICA, LLC

A	Comfort System Central Control Module -J393-
1	32-Pin Connector -T32e-, blue
2	Not used
3	32-Pin Connector -T32c-, grey
4	Double Connector -T2a-, bluegrey
5	17-Pin Connector -T17d-, black
6	32-Pin Connector -T32d-, black
7	17-Pin Connector -T17e-, brown
