Parking Aid Control Module And Parallel Parking Assistance Control Module Connector End View (J446, J791, T16h, T12i, T12h)

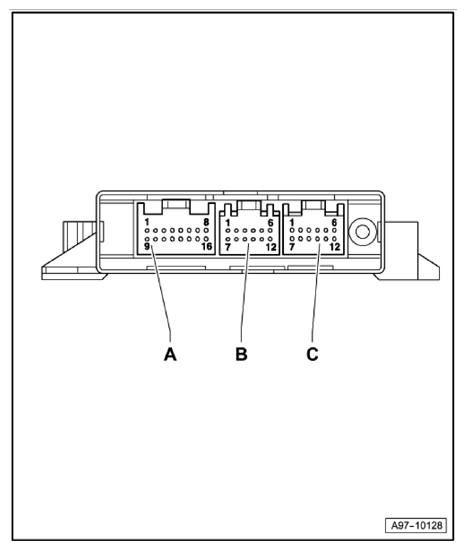

Fig 1: Parking Aid Control Module And Parallel Parking Assistance Control Module Connector End View (J446, J791, T16h, T12i, T12h)
G10360000Courtesy of AUDI OF AMERICA, LLC
A 16-Pin Connector -T16h-, brown
B 12-Pin Connector -T12i-, brown
C 12-Pin Connector -T12h-, black
