Camshaft Position Sensor, Removing And Installing: Removing

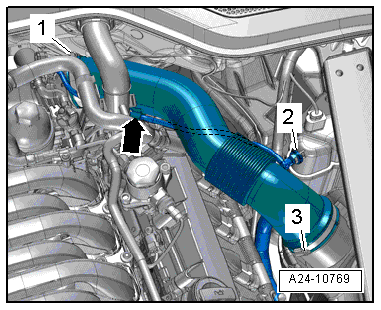

Fig 1: Locating Clamps To Remove Right Air Guide Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamps -1 and 2- and remove the right air guide pipe in order to remove Camshaft Position Sensor 3 -G300- on cylinder bank 1.

-- Loosen the clamps -2 and 3- and remove the right air guide pipe in order to remove Camshaft Position Sensor 4 -G301- on cylinder bank 1.

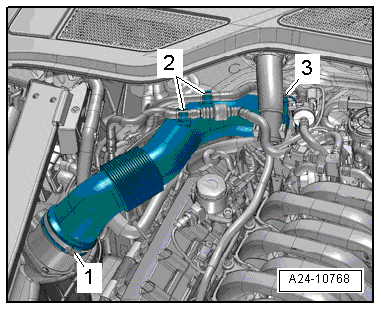

Fig 2: Locating Clamps To Remove Left Air Guide Pipe

Courtesy of AUDI OF AMERICA, LLC
