Intake Manifold Runner Control Valve, Checking

Special Tools And Workshop Equipment Required

• multimeter.
• Wiring diagram.

Test requirements

• Fuse -S 130- OK.
• The Secondary Air Injection (AIR) Pump Relay -J299- OK.
• The parking brake engaged.
• The battery voltage at least 12.5 V.
• The selector lever of automatic transmission in position "P" or "N".
• All electrical consumers switched off (radiator fan must NOT run during test).
• A/C switched off.
• The fuel tank at least ¹ /₄ filled.
• The ignition switched off.

Test procedure

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK .

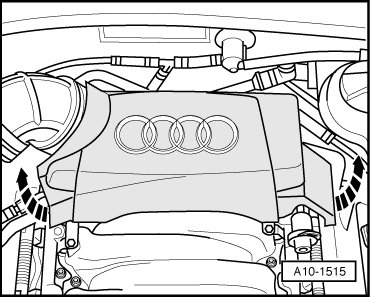

-- Remove the rear engine cover -arrows-.

Start diagnosis

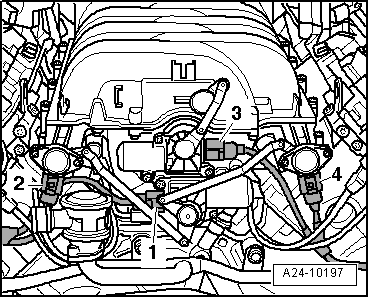

-- Disconnect the Intake Manifold Runner Control (IMRC) Valve -N316- electrical harness connector -1-.

Checking internal resistance

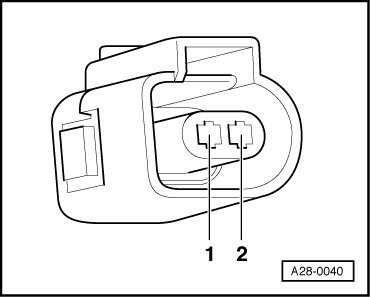

-- Using a multimeter, check the Intake Manifold Runner Control (IMRC) Valve -N316- terminals 1 to 2 for resistance.

Specified value: 25 [+/-] 10 Ω.

If the specified value was not obtained:

-- Replace the Intake Manifold Runner Control (IMRC) Valve -N316-. Refer to the appropriate service information.

If the specified value was obtained:

Checking voltage

Switch the ignition on.

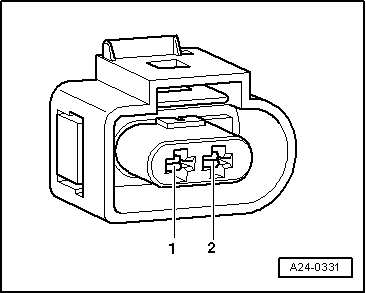

-- Using a multimeter, check the Intake Manifold Runner Control (IMRC) Valve -N316- electrical harness connector terminal 1 to ground (GND) for voltage.

Specified value: battery voltage.

-- Switch the ignition off.

If the specified value was not obtained:

-- Check the wiring from the Intake Manifold Runner Control (IMRC) Valve -N316- electrical harness connector terminal 1 to fuse S 130 on fuse panel B.

-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-- If necessary, repair the wiring connection.

If no malfunctions are found in the wiring:

Checking wiring

If the manufacturers test box is being used, perform the following step.

-- Install the test box.

If the manufacturers test box is not being used, perform the following step.

-- Remove the Engine Control Module (ECM) -J623-. Refer to the appropriate service information.

-- Using a multimeter, check the Intake Manifold Runner Control (IMRC) Valve -N316- electrical harness connector terminal 1 to the Engine Control Module (ECM) -J623- electrical harness connector for resistance.

Intake Manifold Runner Control (IMRC) Valve -N316- electrical harness connector terminal	Engine Control Module (ECM) -J623- electrical harness connector terminal
1	33

Specified value: 1.5 Ω Max.

If the specification was not obtained:

-- Check the wiring for a open circuit.

-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring:

-- Erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .

-- Perform a road test to verify repair.

If the DTC does not return:

Generate readiness code. Refer to READINESS CODE .

If the DTC does return and no malfunction is detected in the wiring and the voltage supply was OK:

-- Replace the Engine Control Module (ECM) -J623-. Refer to the appropriate service information.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
