Overview - Subframe Mount
WARNING: This page is about a different variant/trim than selected.

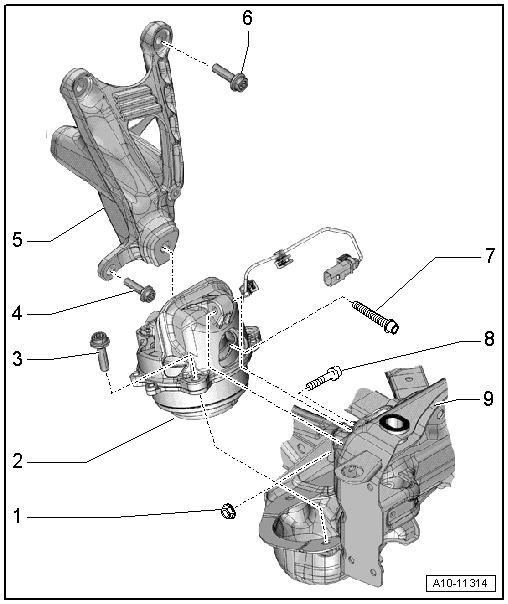

Engine Mount
- Nut
- 20 Nm
- Engine Mount
- Left with the Left Electrohydraulic Engine Mount Solenoid Valve -N144-
- Right with the Right Electrohydraulic Engine Mount Solenoid Valve -N145-
- Removing and installing, refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification, refer to Fig 2
- Bolt
- 40 Nm
- Engine Support
- Bolt
- 40 Nm
- Bolt
- Tightening specification, refer to Fig 2
- Bolt
- Subframe

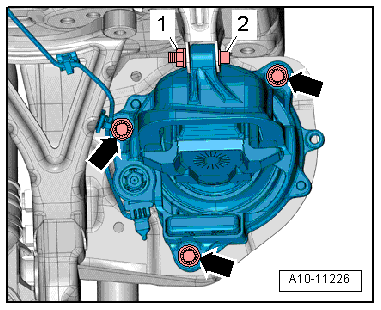

-- Tighten the bolts in 2 steps as follows:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -Arrows- and -2- | Install all the way in by hand. |
| 2. | -Arrows- and -2- | 20 Nm |

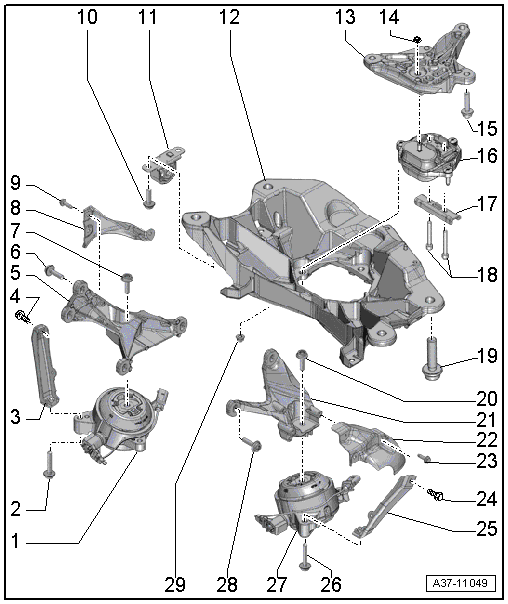

Transmission Mount
- Right Transmission Mount
- With Transmission Mount Valve 1 -N262-
- Removing and installing, refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW .
- Brace
- Bolt
- 20 Nm
- Right Transmission Support
- Bolt
- 20 Nm
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW .
- Heat Shield
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW .
- Not installed
- Not installed
- Tunnel Crossmember
- For removing and installing, refer to ASSEMBLY MOUNTS OVERVIEW .
- Rear Transmission Support
- Removing and installing, refer to TRANSMISSION SUPPORT AND REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING
- Nut
- Only remove if the transmission mount must be separated from the transmission support.
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Rear Transmission Mount
- Removing and installing, refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING
- Lower Stop
- For the rear transmission mount
- Bolts
- Only remove if the transmission mount must be separated from the transmission support
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Left Transmission Support
- Heat Shield
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Brace
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Left Transmission Mount
- With Transmission Mount Valve 2 -N263-
- Removing and installing, refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Nut
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
