Transmission Support And Rear Transmission Mount, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

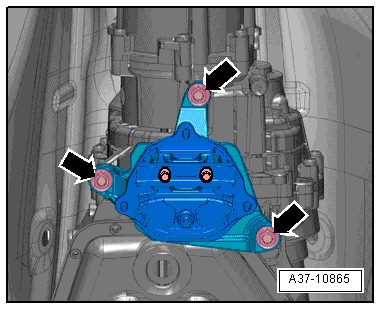

Fig 1: Identifying Transmission Support With Transmission Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tunnel crossmember, refer to ASSEMBLY MOUNTS OVERVIEW .

-- Remove the bolts -arrows- and the transmission support with the transmission mount from the transmission.
