Level Control System Control Module Connector End View (J197, T9a, T18b, T15a, T12a, T6b)

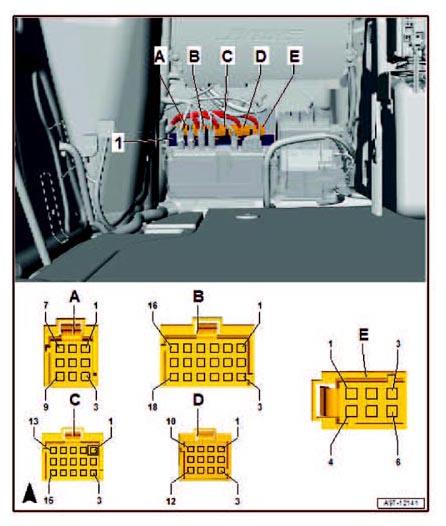

Fig 1: Level Control System Control Module Connector End View (J197, T9a, T18b, T15a, T12a, T6b)

Courtesy of AUDI OF AMERICA, LLC

1	Level Control System Control Module -J197-
A	9-Pin Connector -T9a-, grey
B	18-Pin Connector -T18b-, grey
C	15-Pin Connector -T15a-, purple
D	12-Pin Connector -T12a-, green
E	6-Pin Connector -T6b-, blue

-T9a- (A)	Designation	-T18b-(B)	Designation	-T15a-(C)	Designation
1	Terminal 30, from Fuse Panel F -SF-	1	Power supply valves	1	Left Front Level Control System Sensor -G78-
2		2	Left Front Suspension Strut Valve -N148-	2	Left Front Level Control System Sensor -G78-
3	Terminal 31, to 391 Ground Connection 26 (in main wiring harness) 675 Ground Connection 2 (in right luggage compartment)	3	Right Front Suspension Strut Valve -N149-	3	Left Front Level Control System Sensor -G78-
4		4	Valve Block	4	Right Front Level Control Sensor -G289-
5		5	Left Rear Suspension Strut Valve -N150-	5	Right Front Level Control Sensor -G289-
6	Terminal 15, from Fuse Panel F -SF-	6	Right Rear Suspension Strut Valve -N151-	6	Right Front Level Control Sensor -G289-
7		7	Valve Block	7	Left Rear Level Control System Sensor -G76-
8		8	Level Control Accumulator Valve -N311-	8	Left Rear Level Control System Sensor -G76-
9		9	Level Control System Compressor Relay -J403-	9	Left Rear Level Control System Sensor -G76-
		10		10	Right Rear Level Control System Sensor -G77-
		11		11	Right Rear Level Control System Sensor -G77-
		12		12	Right Rear Level Control System Sensor -G77-
		13		13	Level Control Pressure Sensor -G291-
		14		14	Level Control Pressure Sensor -G291-
		15		15	Level Control Pressure Sensor -G291-
		16
		17
		18

-T12a-(D)	Designation	-T6b- (E)	Designation
1	Left Front Dampening Adjustment Valve -N336-	1	FlexRay-Bus
2	Left Rear Dampening Adjustment Valve -N338-	2	FlexRay-Bus
3		3
4	Left Front Dampening Adjustment Valve -N336-	4	Sensor Electronics Control Module -J849-, only High-Voltage Model
5	Right Front Dampening Adjustment Valve -N337-	5	Sensor Electronics Control Module -J849-, only High-Voltage Model
6		6
7	Left Rear Dampening Adjustment Valve -N338-
8	Right Rear Dampening Adjustment Valve -N339-
9	Level Control Pump Temperature Sensor -G290-
10	Right Front Dampening Adjustment Valve -N337-
11	Right Rear Dampening Adjustment Valve -N339-
12	Level Control Pump Temperature Sensor -G290-
