Power Steering Control Module Connector End View (J500, T2px, V187, T6bv, G269)

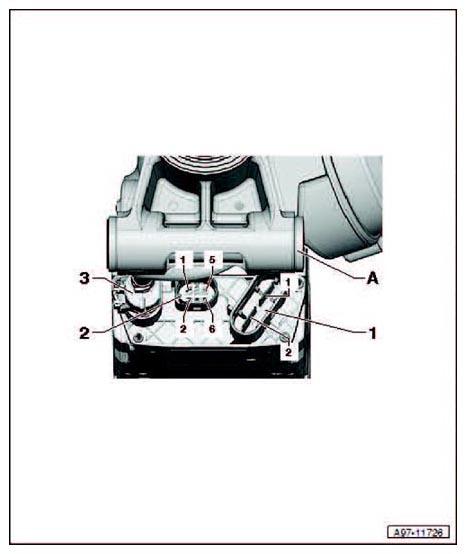

Fig 1: Power Steering Control Module Connector End View (J500, T2px, V187, T6bv, G269)

Courtesy of AUDI OF AMERICA, LLC

A	Power Steering Control Module -J500-
	with: Electro-mechanical Power Steering Motor -V187-, steering torque sensor -G269-
1	Double Connector -T2px-, black, Electro-mechanical Power Steering Motor -V187-
2	6-Pin Connector -T6bv-, black
3	Connector steering torque sensor -G269-
