Rear View Camera System Control Module Connector End View (J772, T20k, T2af, R189, T2ae, J794)

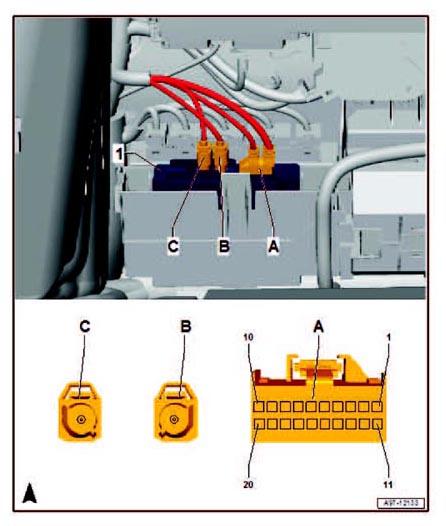

Fig 1: Rear View Camera System Control Module Connector End View (J772, T20k, T2af, R189, T2ae, J794)
| 1 | Rear View Camera System Control Module -J772- |
| A | 20-Pin Connector -T20k-, red |
| B | Double Connector -T2af-, grey, Rear View Camera -R189- |
| C | Double Connector -T2ae-, green, Control Module for Information Electronics 1 -J794- |
| -T20k- (A) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | |
| 4 | |
| 5 | |
| 6 | |
| 7 | |
| 8 | |
| 9 | Rear View Camera -R189- |
| 10 | Terminal 30, from Fuse Panel F -SF- |
| 11 | CAN-Bus Instrument Cluster, Low Wiring junction for instrument cluster CAN Bus, Low -TV40- |
| 12 | CAN-Bus Instrument Cluster, High Wiring junction for instrument cluster CAN-Bus, High -TV36- |
| 13 | |
| 14 | |
| 15 | |
| 16 | |
| 17 | |
| 18 | |
| 19 | Rear View Camera -R189- |
| 20 | Terminal 31, to 733 Ground Connection 3, in luggage compartment, left |
