Low Fuel Pressure Sensor, Checking

Special tools and workshop equipment required

• multimeter.
• Wiring diagram.

Test requirements

• The Fuel Pump (FP) Control Module -J538- OK.
• The Engine Control Module (ECM) - J623- fuses OK.
• The fuel filter OK.
• The battery voltage at least 12.5 V.
• All electrical consumers switched off.
• A/C switched off.
• The fuel tank at least ¹ /₄ filled.
• The ignition switched off.

Test procedure

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK .

Start diagnosis

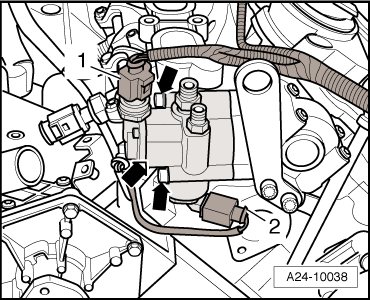

-- Disconnect the Low Fuel Pressure Sensor -G410- electrical harness connector -1-.

Checking voltage

-- Switch the ignition on.

-- Using a multimeter, check the Low Fuel Pressure Sensor -G410- electrical harness connector for voltage.

Low Fuel Pressure Sensor -G410- electrical harness connector terminals	Specified value
2 to Battery positive (+)	Battery voltage (+)
1 to Ground (GND)	about 5 V
3 to Ground (GND)	about 5 V

-- Switch the ignition off.

If the specified values are obtained:

-- Replace the Low Fuel Pressure Sensor -G410-.

If the specified values are not obtained:

Checking wiring

If the manufacturers test box is being used, perform the following step.

-- Install the test box.

If the manufacturers test box is not being used, perform the following step.

-- Remove the Engine Control Module (ECM) -J623-. Refer to appropriate service information.

-- Using a multimeter, check the Low Fuel Pressure Sensor -G410- electrical harness connector terminals to the Engine Control Module (ECM) -J623- electrical harness connector T60 terminals for resistance.

Low Fuel Pressure Sensor -G410- electrical harness connector terminals	Engine Control Module (ECM) -J623- electrical connector T60 terminals or test box socket
1	27
2	13
3	58

Specified value: 1.5 Ω Max.

If the specified value was not obtained:

-- Check the wiring for an open circuit, a short circuit to each other, Battery (+), or Ground (GND).

-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring and the voltage supply was not OK:

-- Erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .

-- Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code. Refer to READINESS CODE .

-- End diagnosis.

If the DTC returns and no malfunction is found in the wiring and voltage supply was OK:

-- Replace the Engine Control Module (ECM) -J623-.Refer to appropriate service information.

Assembly is performed in the reverse order of the removal, note the following:

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
