Windshield Wiper Motor -V-, Installing In Wiper Frame

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Torque Wrench 1331 5-50Nm:VAG1331
Puller - Wiper Arm Kit - Puller 5:T10369/5

-- Deactivate Alternating Park Position (APP function). Refer to WIPER MOTOR ALTERNATING PARK POSITION FUNCTION, DEACTIVATING .

-- Insert Windshield Wiper Motor -V- into wiper frame and secure it with mounting bolts -arrows-.

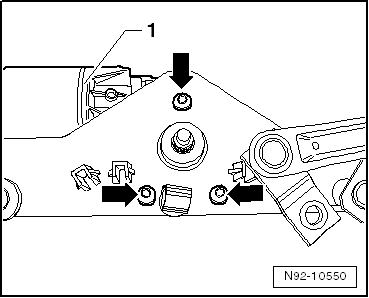

Fig 1: Identifying Mounting Bolts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the threaded connections to the specification given in the overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .

-- Let Windshield Wiper Motor -V- run to rest position.

NOTE:

The hood (Engine Hood Contact Switch -F266-) must be closed in order to use the windshield wipers.

-- Mount the crank -2- on the Windshield Wiper Motor -V- shaft; the distance -A- between the crank -2- and the right edge of the stop -3- must be 3.5 mm.

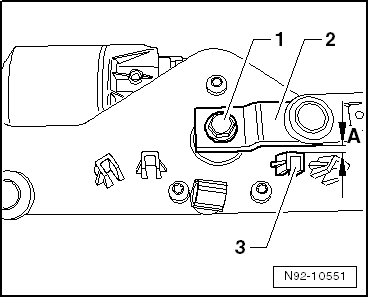

Fig 2: Identifying Crank -2- With Hex Nut -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Thread on crank -2- with hex nut -1-.

-- Tighten the hex nut -1- to the specification given in the assembly overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .

CAUTION:

When connecting battery, always perform work procedure as described in repair manual. Refer to BATTERY, DISCONNECTING AND CONNECTING . Failure to follow the sequence can trigger the battery cut-off relay and damage the electrical equipment.
Observe notes for threaded connections of battery terminals. Refer to BATTERY POST/TERMINAL .

-- Connect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

NOTE:

If Wiper Motor Control Module -J400- or Windshield Wiper Motor -V- is replaced, Wiper Motor Control Module -J400- must be coded. Refer to Wiper Motor Control Module -J400-, CODING .
