Wiper Arms, Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Torque Wrench 1331 5-50Nm:VAG1331
Puller - Wiper Arm Kit - Puller 5:T10369/5

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Position the driver wiper arm approximately in park position on the wiper arm shaft.

Fig 1: Identifying Mounting Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

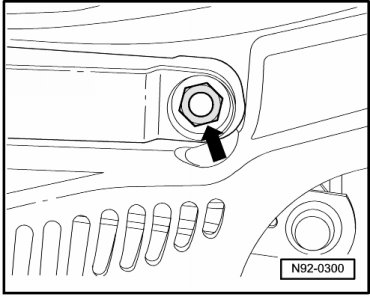

-- Install the nut -2- loosely on the passenger wiper arm shaft.

-- Position the stretched passenger wiper arm on the wiper arm shaft in the position (dashes) illustrated.

Fig 2: Identifying Passenger Wiper Arm Washer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

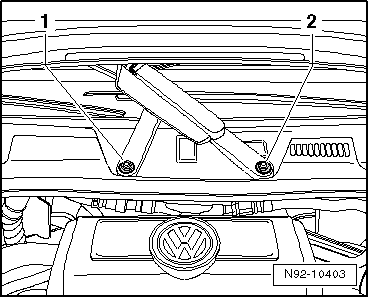

-- Install the nuts -1 and 2- loosely on the passenger wiper arm shafts.

Fig 3: Identifying Passenger Wiper Arm Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

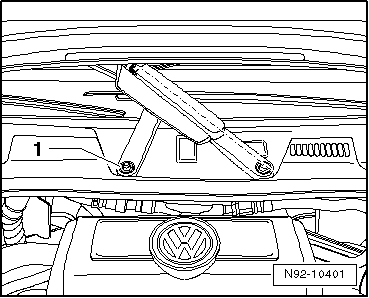

NOTE:

Only tighten the nut -2- after adjusting the windshield wiper blades park position.

-- Tighten the nut -1- to the specification given in the assembly overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .

-- Bring the passenger wiper arm into its approximate park position by hand.

-- Adjust the windshield wiper blade park position. Refer to WINDSHIELD WIPER BLADES, ADJUSTING PARK POSITION .
