External Audio Source Connection -R199-, Aux In Jack, Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Perform The Following Steps:

-- Turn off the ignition and all electrical equipment.

-- Remove the rear trim from the center console. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

-- Remove the air guide intermediate piece for the rear vents from the center console.

-- Open the center armrest.

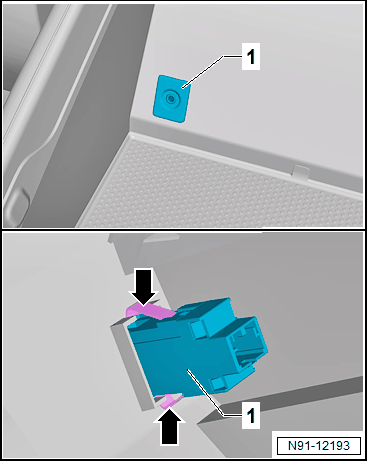

-- Press the clips -arrows- together on the External Audio Source Connection -R199- -1- using the :3409 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time, push the External Audio Source Connection -R199- -1- forward in the center console storage compartment.

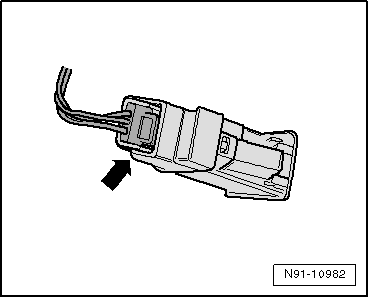

-- Disconnect the connector -arrow-.

-- Remove the external audio source connection from the vehicle.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
