External Audio Source Connection -R199- Removing And Installing, Connection In Center Console: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Perform The Following Steps:

-- Turn off the ignition and all electrical equipment.

-- Open the front center armrest.

-- Disconnect the wire connection -arrow- from the harness connector.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the switch trim. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

-- Pull the trim from the connector housing in direction of -arrow- by releasing the tabs from the rear side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

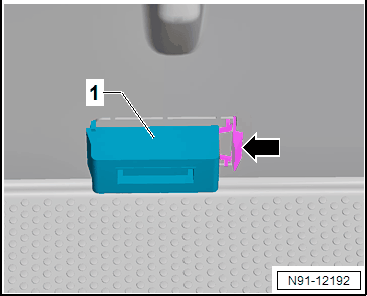

-- Release the catch -arrow-.

-- Slide the External Audio Source Connection -R199- -1- forward out of the storage compartment.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
