Battery In Control Module For Emergency Call Module And Communication Unit -J949-, Replacing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Remove the Control Module for Emergency Call Module and Communication Unit -J949-. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .

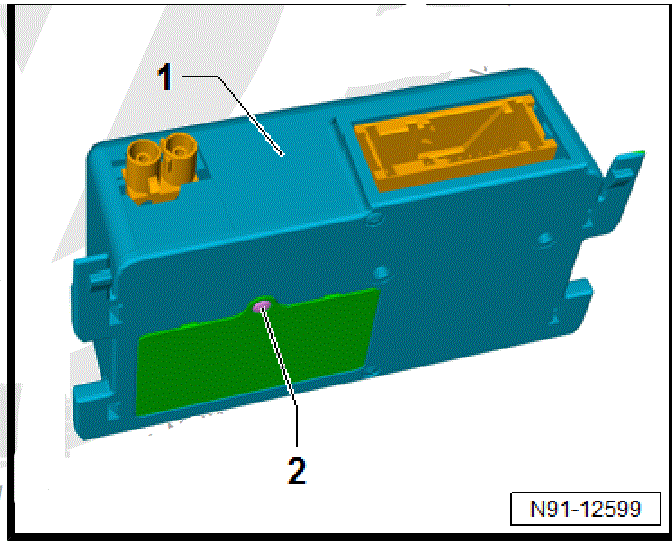

-- Remove the bolt -2- on the Control Module for Emergency Call Module and Communication Unit -J949- -1-.
-- Remove the cover from the battery compartment.

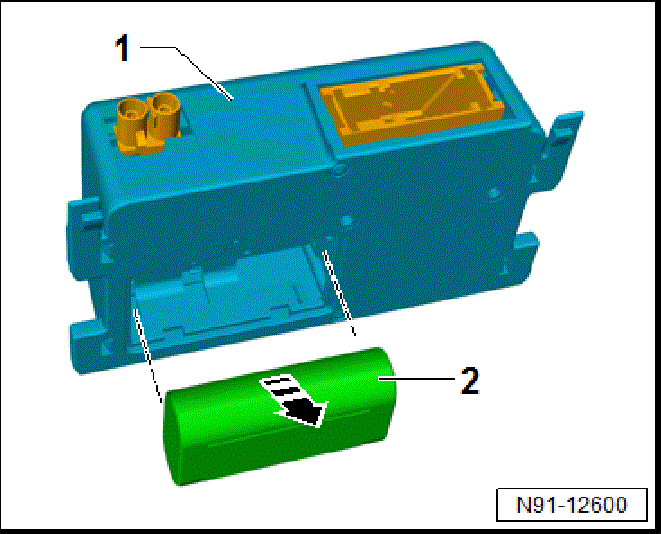

-- Remove the battery -2- from the Control Module for Emergency Call Module and Communication Unit -J949- -1- in direction of -arrow-.
