Cell Phone Operating Electronics Control Module -J412-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The cell phone operating electronics control module is not installed in the "RNS 850".

Perform The Following Steps:

-- Turn off the ignition and all electrical equipment.

-- Move the right front seat into its highest position and the move it all the back.

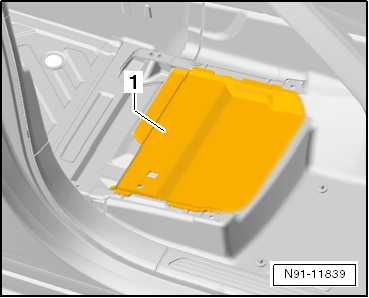

-- Fold up the carpet -1- under the seat.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

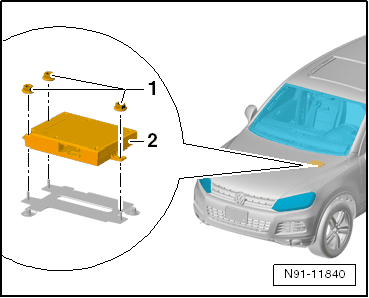

-- Remove the three nuts -1- and remove the control module -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors.
