Front Information Display Control Head, Removing And Installing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Radio Removal Tool: T10057
Trim Removal Wedge: 3409

Removing:

Perform the following work:

-- Turn off the ignition and all electrical equipment.

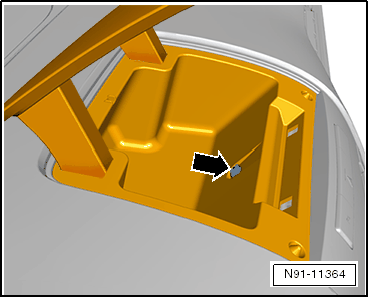

-- Remove the retaining clip in the storage compartment on the instrument panel -arrow-.

Fig 1: Identifying Storage Compartment Retaining Clip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

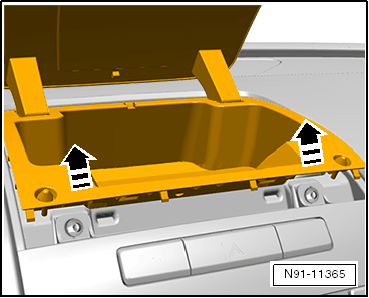

-- Release the storage compartment and pull up slightly in the direction of -arrow- until the underlying bolts are visible.

Fig 2: Identifying Storage Compartment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

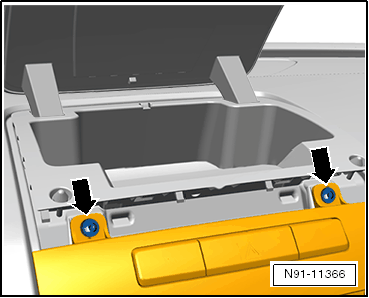

-- Unscrew the bolts -arrows- at the front information display control head.

Fig 3: Front Information Display Control Head Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

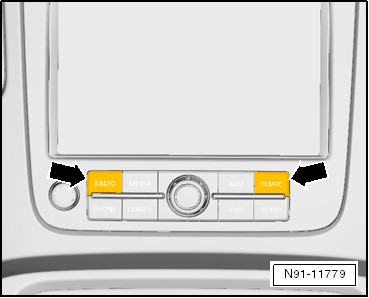

It is necessary to remove the buttons identified by the -arrows-, from the display unit.

Fig 4: Identifying Buttons -Arrows- To Display Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

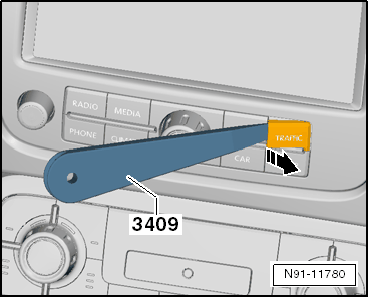

-- Pry the buttons out carefully in direction of -arrow- using Trim Removal Wedge: 3409 , as illustrated.

Fig 5: Pry The Buttons Out

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

If any of the buttons get damaged while being removed, they can ordered as a replacement part. Pay attention the replacement part number because there are different versions for different countries.

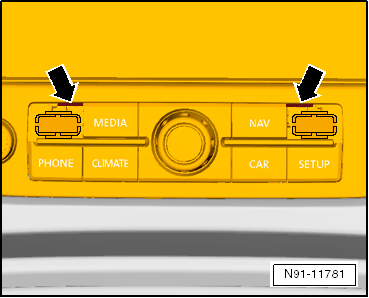

The slots for the removal tools will be visible once both buttons are removed -arrows-.

Fig 6: Identifying Buttons

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert two of the Radio Removal Tool: T10057 into the slots until they lock into place. The word TOP, on both the left and right tools, must be facing up.

NOTE:

The removal tools may only be inserted into the provided slots. If not, the circuit board behind the buttons could get damaged.

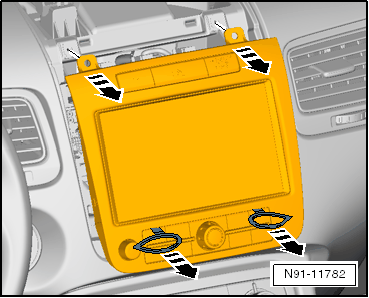

-- Remove the front information display control head from the installation frame in direction of -arrows-.

Fig 7: Identifying Front Information Display Control Head From Installation Frame, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Depending on vehicle equipment, there may be additional connectors installed. Also disconnect and remove these connectors.

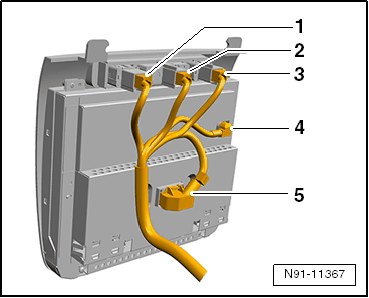

-- Release and disconnect the connectors -1- through -5-.

Fig 8: Release And Disconnect The Harness Connectors -1- Through -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing:

Install in reverse order of removal. Note the following:

-- Install both buttons on the display unit.

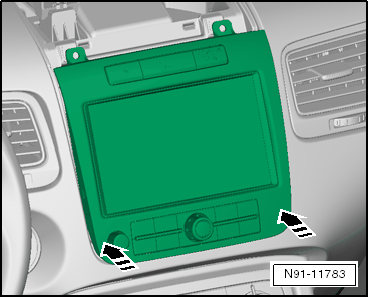

-- Push the display unit into the frame in direction of -arrow- until it locks in place.

Fig 9: Push The Display Unit Into The Frame

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Do not press on the display and control buttons of the display unit with force during assembly.

When replacing radio navigation system control modules, it is necessary to adapt the replaced control modules to the vehicle. If this is not performed, component protection is activated for these control modules so that they do not work or only on a highly limited basis.

Adapt the control module. Refer to ANTI-THEFT COMPONENT PROTECTION .

-- Make sure the buttons that were removed earlier work correctly.
