Multi-Pin Connectors Of The Front Information Display Control Head, Overview

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

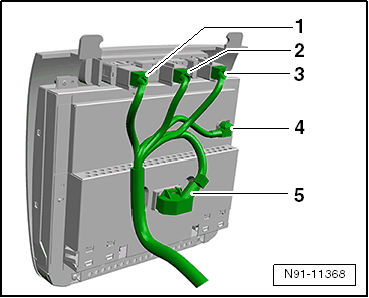

Fig 1: Exploded View Of Multi-Pin Connectors Of The Front Information Display Control Head

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Multi-pin connector for the >>airbag -disabled-<< indicator lamp
Multi-pin connector for the emergency flasher indicator lamp
Multi-pin connector for the parking aid switch
Multi-pin connector for the TV tuner and rearview camera video signal wire
Multi-pin connector T 20 for the front information display control head. Contact assignment of the multi-pin connector T 20. Refer to CONTACT ASSIGNMENT OF THE MULTI-PIN CONNECTOR T 20

NOTE:

Depending on vehicle equipment, there may be additional connectors installed for the switch.
