Multi-Pin Connector Terminal Assignment 4

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

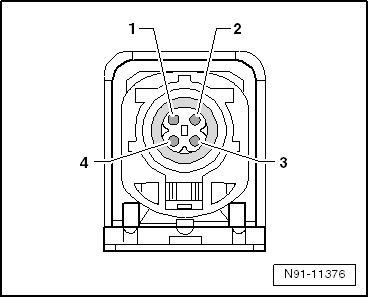

Fig 1: Contact Assignment Of Multi-Pin Connector 4
GWWN91-11376Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -  LVDS, negative

2 -  LIN

3 -  LVDS, positive

4 -  Negative
