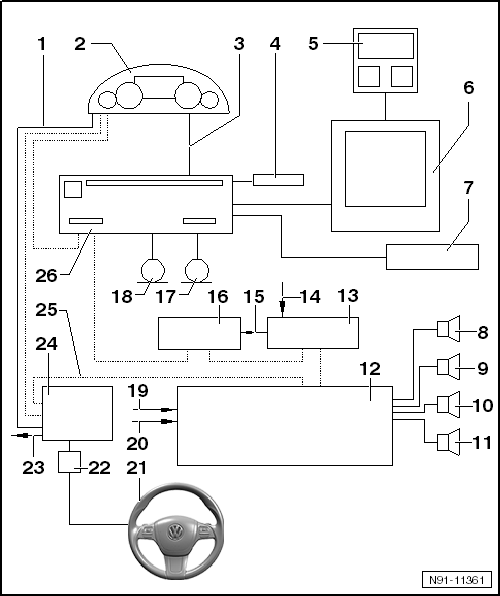

Radio Navigation System "RNS 850", System Overview
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- CAN bus DDP
- Instrument Cluster Control Module -J285-
- Lin 1 - Bus
- External Audio Source Connection -R199-
- Emergency Call Button -E276-
- Front Information Display Control Head -J685-
- Rearview Camera System Control Module -J772- /Peripheral Camera Control Module -J928-
- Left Front Speaker Group
- Left Rear Speaker Group
- Right Rear Speaker Group
- Right Front Speaker Group
- Radio -R-
- TV Tuner -R78-
- AV Signal Input or AUX Signal Input
- FBAS, Data Wire From the TV Tuner to the DVD Changer
- DVD Changer -R161-
- Right Front Microphone -R141- for the Telephone
- Installed in the right roof console
- Left Front Microphone -R140- for the Telephone
- Installed in the left roof console
- Telephone Signal Input
- AUX Signal Input
- Multifunction Steering Wheel with Right Multifunction Buttons on Steering Wheel -E441- or Left Multifunction Buttons on Steering Wheel -E440-
- Steering Column Electronics Control Module -J527-
- CAN bus BAP
- Data Bus On Board Diagnostic Interface -J533-
- MOST Bus, Fiber-Optic Cable
- Information Electronics Control Module 1 -J794-
Antenna system overview. Refer to OVERVIEW - ANTENNA SYSTEM, "RNS 850" RADIO/NAVIGATION SYSTEM
