Antenna Amplifiers -R24- / -R111- / -R83- / -R84-, Removing And Installing, E-Tron SPORTBACK: Notes
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

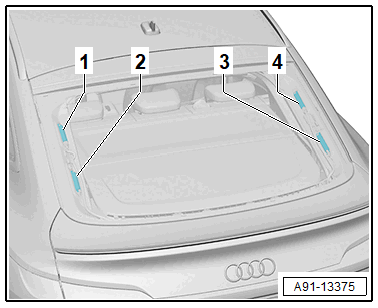

The antenna amplifier is located on the right and left side of the rear lid.
 Courtesy of AUDI OF AMERICA, LLC
|
- -1- Antenna Amplifier 2 -R111-
- -2- TV Antenna Amplifier 3 -R84-
- -3- TV Antenna Amplifier 2 -R83-
- -4- Antenna Amplifier -R24-
Removing and installing is identical.
