Rearview Camera System Control Module -J772-, Removing And Installing: Removing

-- Open Right Luggage Compartment Storage Bin.

The Rearview Camera System Control Module -J772- -3- Is Clipped Into The Bracket -2-.

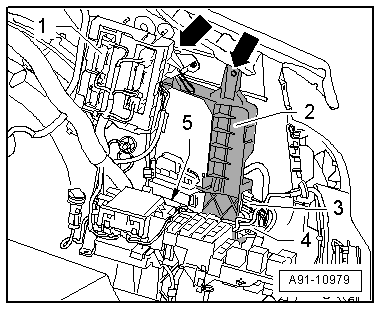

Fig 1: Identifying Bracket From Storage Compartment In Order To Disconnect Connectors, Removal

Courtesy of AUDI OF AMERICA, LLC

Remove the Comfort System Central Control Module -J393- -1- first, and then the bracket -2-.

The connectors on the Comfort System Central Control Module -J393- are not disconnected.

-- Remove the screws -arrows- and nuts -5-.

-- Remove the bracket -2- from the storage compartment in order to disconnect the connectors -3- and -4-.

Fig 2: Identifying Bracket From Storage Compartment In Order To Disconnect Connectors, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Unclip Rearview Camera System Control Module -J772- out of the bracket -2- and remove it upward.

-- Open Right Luggage Compartment Storage Bin.

The Rearview Camera System Control Module -J772- -2- is attached to the rear bracket -1-.

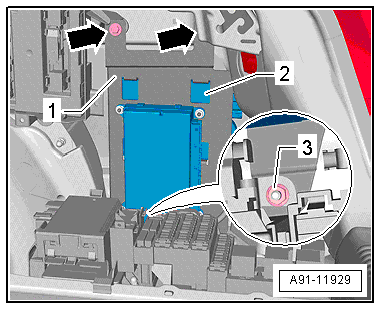

Fig 1: Identifying Rearview Camera System Control Module -2- Is Attached To Rear Bracket -1

Courtesy of AUDI OF AMERICA, LLC

To remove it, the bracket -1- must first be removed.

-- Remove the screws -arrows- and nuts -3-.

-- Remove the bracket -1- from the storage compartment and disconnect the connectors from the modules.

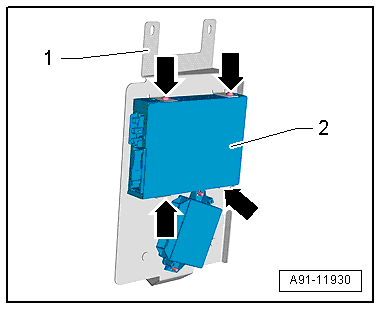

Fig 2: Identifying Bolts -Arrows- On Rearview Camera System Control Module -2- And Remove It From Bracket -1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- on the Rearview Camera System Control Module -J772- -2- and remove it from the bracket -1-.
