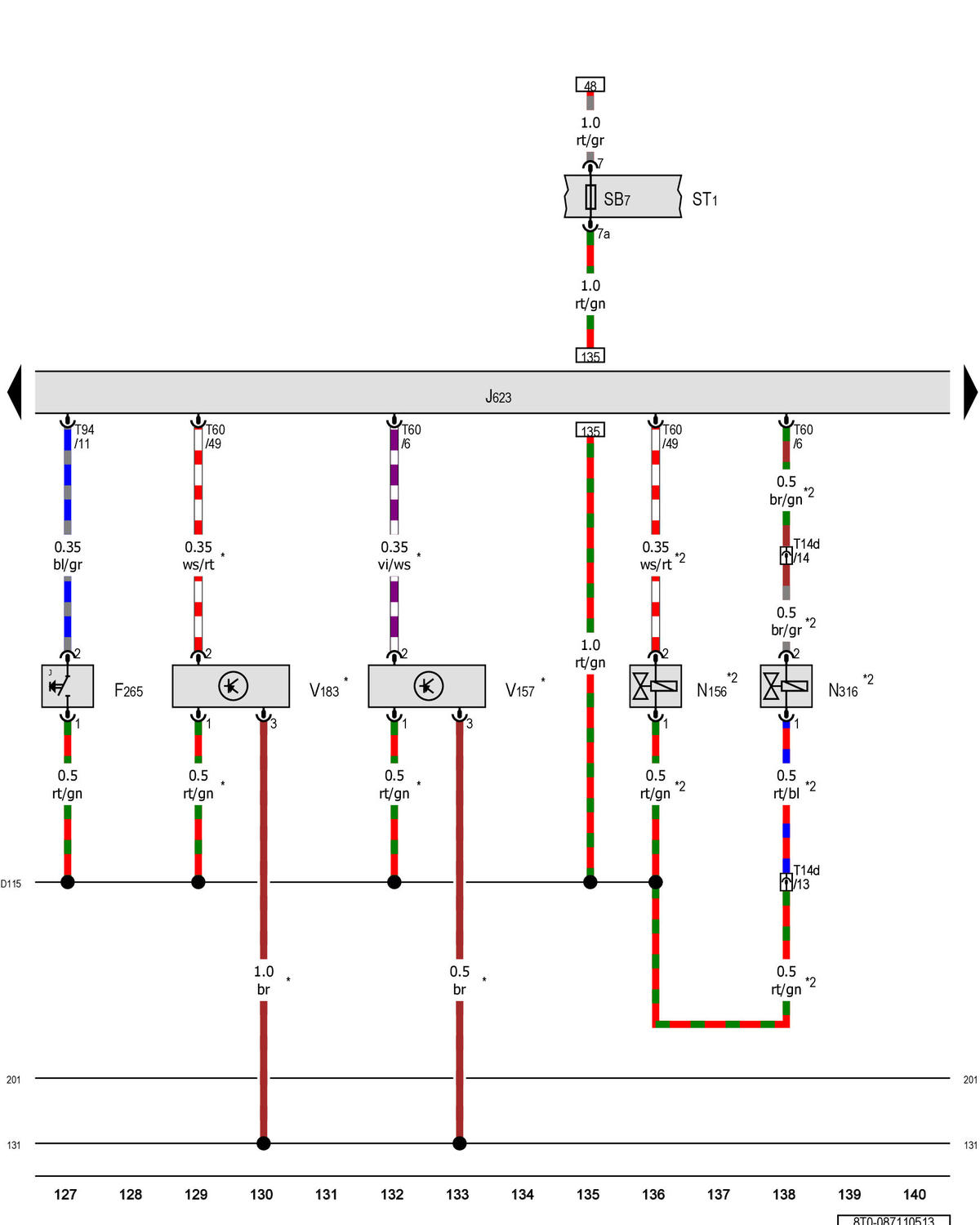

Map Controlled Engine Cooling Thermostat, Engine Control Module, Intake Manifold Runner Control Valve, Intake Flap Motor, Variable Intake Manifold Runner Motor
F265
Map controlled engine cooling thermostat Type:BT, Slpdok:, Aim:BTF265
J623
Engine control module Type:BT, Slpdok:, Aim:BTJ623 Type:BT, Slpdok:, Aim:BTJ623
N156
Intake manifold tuning valve Type:BT, Slpdok:, Aim:BTN156
N316
Intake manifold runner control valve Type:BT, Slpdok:, Aim:BTN316
ST1
Fuse panel 1
SB7
Fuse 7 (on fuse panel B) Type:BT, Slpdok:, Aim:BTSB-
T14d
14-pin connector, in the engine compartment
T60
60-pin connector Type:BT, Slpdok:, Aim:BTT60
T94
94-pin connector Type:BT, Slpdok:, Aim:BTT94
V157
Intake flap motor Type:BT, Slpdok:, Aim:BTV157
V183
Variable intake manifold runner motor Type:BT, Slpdok:, Aim:BTV183
131 - Ground connection 2 (in engine compartment wiring harness)
201 - Ground connection 5 (in engine compartment wiring harness)
D115 - Connection 13 (in engine compartment wiring harness)
* Omitted As A Running Change
*2 Running Change
