Steering Column Electronic Control Module Connector End View (J527, T10ab, T20c, T4d, T12i, T8f, T10ag, T10ah)

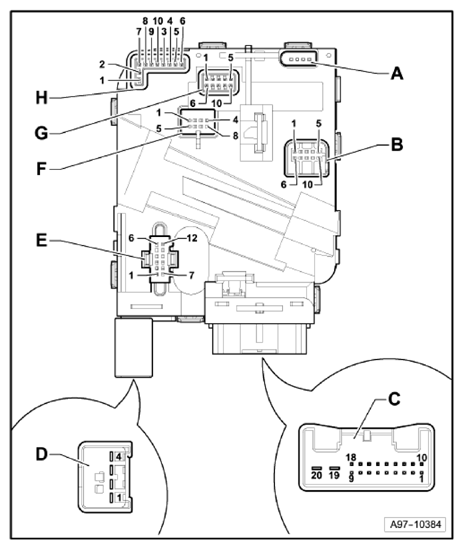

Fig 1: Steering Column Electronic Control Module Connector End View (J527, T10ab, T20c, T4d, T12i, T8f, T10ag, T10ah)
| A | Not used |
| B | 10-Pin Connector -T10ab- |
| C | 20-Pin Connector -T20c-, black on wiring harness |
| D | 4-Pin Connector -T4d-, yellow, on wiring harness |
| E | 12-Pin Connector-T12i- |
| F | 8-Pin Connector -T8f- |
| G | 10-Pin Connector -T10ag- |
| H | 10-Pin Connector -T10ah- |
