Combination Base Switch Assembly: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's airbag module. < Ref. to REMOVAL , Driver's Airbag Module. >
    WARNING: Before handling the airbag module, refer to "CAUTION" of "General Description" in "AIR-BAG SYSTEM". < Ref. to CAUTION , General Description. >
  2. Remove the steering wheel. < Ref. to REMOVAL , Steering Wheel. >
  3. Remove the screws and remove the steering column cover lower.

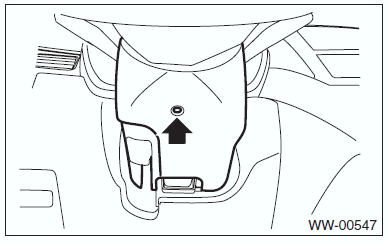

    Fig 1: Identifying Lower Steering Column Cover Screws
    G00522833Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness cover lock.
  5. Remove the screws and detach the knee protector.

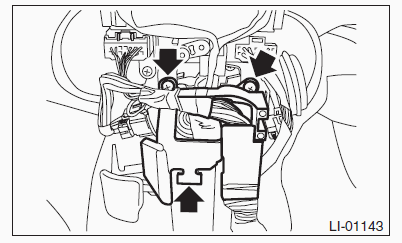

    Fig 2: Identifying Knee Protector Screws
    G00522834Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the screws and remove the steering column upper cover.

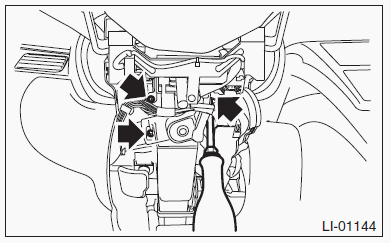

    Fig 3: Identifying Upper Steering Column Cover Screws
    G00522835Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the screws, and then remove the roll connector.

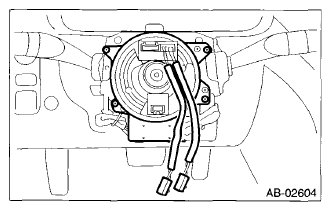

    Fig 4: Roll Connector And Screws
    G07672955Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the screws, disconnect the harness connector and remove the combination base switch assembly.

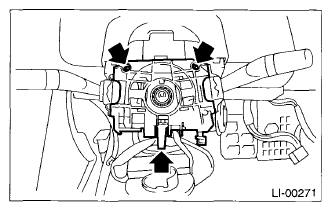

    Fig 5: Locating Screws And Combination Base Switch Assembly
    G07672956Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the combination switch.
    • Combination switch (light): < Ref. to REMOVAL , Combination Switch (Light). >
    • Combination switch (Wiper): < Ref. to REMOVAL , Combination Switch (Wiper). >
