Combination Switch (Light): Inspection: Notes

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the combination switch connector.
  2. Check the resistance between combination switch terminals.

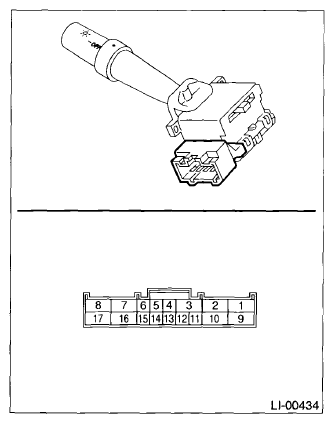

    Fig 1: Checking Resistance Between Combination Switch Terminals
    G07672952Courtesy of SUBARU OF AMERICA, INC.
  3. Replace the combination switch (light) if the inspection result of each switch is not within the standard value.
