Battery For Remote Control Key, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before installing the battery, one of the buttons must be pushed.

This resets the radio-frequency unit, and it can now recognize the new battery.

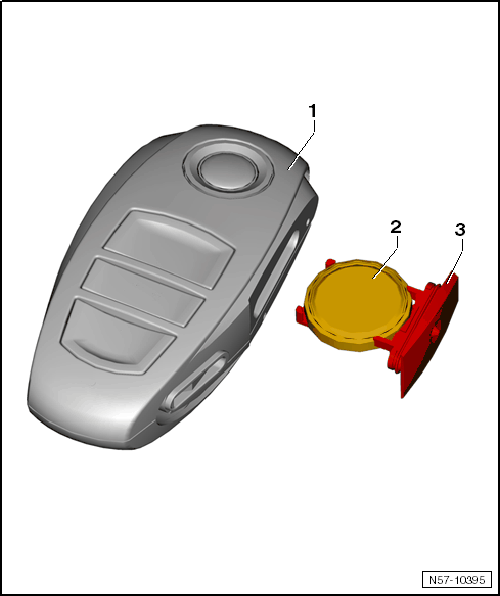

Fig 1: Identifying Radio Remote Container And New Battery

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Note the polarity and installation position when installing the battery.

-- Install the battery -2- in the battery compartment -3- with the positive terminal pointing down.

The positive terminal is marked on the battery compartment and the battery.

-- Installation is performed in reverse order of the removal.
