Battery For Remote Control Key, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

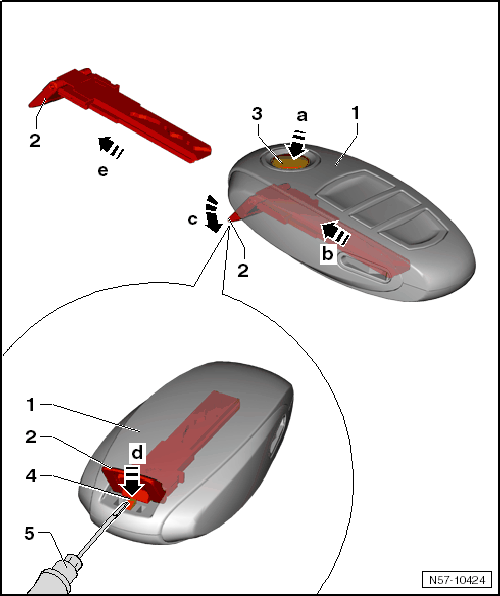

Fig 1: Identifying Remote Control Key -1-, Button -Arrow A-, Emergency Key -2-, Logo -3-, Release -4- And Screwdriver -5-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the button with the brand emblem -3- on the remote control key -1- in direction of -arrow a-.

The emergency key -2- is released and jumps slightly out of the remote control key in direction of -arrow b-. The key ring on the emergency key -2- folds down in direction of -arrow c-.

-- Push the release -4- and the button with the logo -3- with a screwdriver -5- at the same time in direction of -arrow a and arrow d-.

-- Pull the emergency key -2- out of the remote control key in direction of -arrow e-.

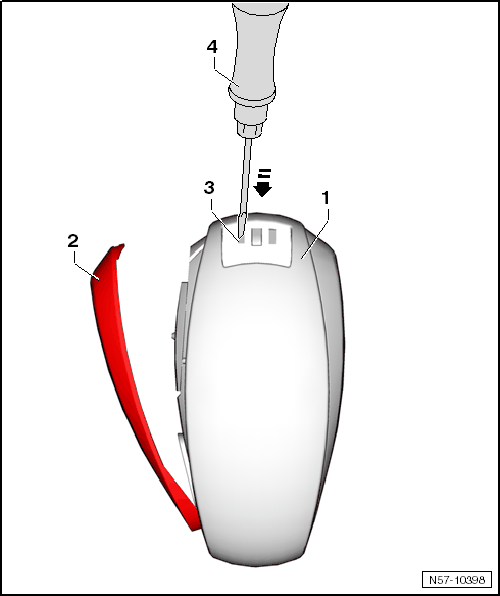

Fig 2: Identifying Back Side -1- Of Remote Control Key, Cover -2-, Left Recess -3- And Narrow Screwdriver -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the remote control key over to the back side -1-.

-- Insert a narrow screwdriver -4- into the left recess -3-.

-- Open the locking mechanism.

-- Remove the cover -2- from the remote control key.

Fig 3: Identifying Radio Remote Container And New Battery

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the remote control key back over to the front side -1-.

-- Remove the battery compartment -3- from the remote control key.

-- Remove the battery -2- from the battery compartment -3-.
