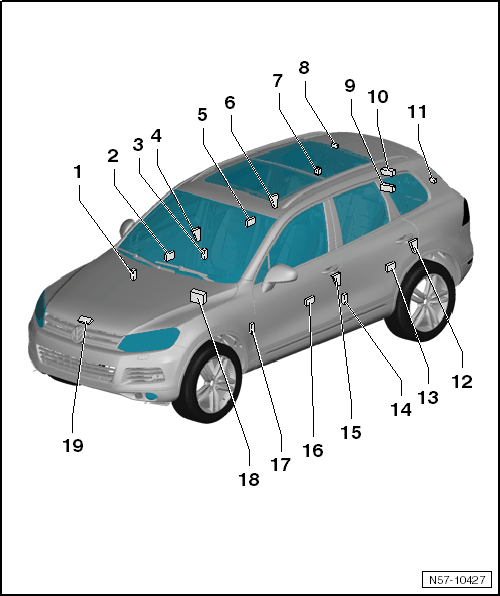

Component Location Overview - Central Locking Components
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Connector Station
- Component location: right A-pillar.
- Loosen the boot on the pillar to disconnect the connector. Refer to DOOR, REMOVING AND INSTALLING .
- Front Passenger Door Control Module -J387-
- It is attached to the door subframe.
- Connector Station
- Component location: right B-pillar
- To disconnect harness connector, release bellows at pillar
- Front Passenger Central Locking Lock Unit -F221-
- Electrical central locking system is integrated in door lock.
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Right Rear Door Control Module -J389-
- It is attached to the door subframe.
- Right Rear Central Locking Lock Unit -F223-
- Electrical central locking system is integrated in door lock.
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Fuel Filler Door Unlock Motor -V155-
- Installed location: on the fuel filler door unit adjusting element.
- Removing. Refer to ADJUSTING ELEMENT, REMOVING AND INSTALLING .
- Rear Lid Connector Station
- Installed location: behind the left luggage compartment trim panel
- Removing and installing. Refer to LUGGAGE COMPARTMENT TRIM PANELS
- Rear Lid Lock Unit -F256-
- Component location: bolted to the rear lid
- Removing and installing. Refer to REAR LID LATCH, REMOVING AND INSTALLING .
- Release Button In Rear Lid Handle -E234-
- Component location: bolted to the rear lid
- Removing. Refer to RELEASE BUTTON, REMOVING AND INSTALLING .
- Rear Lid Connector Station
- Installed location: behind right luggage compartment trim panel.
- Removing and installing. Refer to LUGGAGE COMPARTMENT TRIM PANELS
- Left Rear Central Locking Lock Unit -F222-
- Electrical central locking system is integrated in door lock.
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Left Rear Door Control Module -J388-
- It is attached to the door subframe.
- Connector Station
- Component location: left B-pillar
- To disconnect harness connector, release bellows at pillar
- Driver Central Locking Lock Unit -F220-
- Electrical central locking system is integrated in door lock.
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Driver Door Control Module -J386-
- It is attached to the door subframe.
- Connector Station
- Component location: left A-pillar
- Loosen the boot on the pillar to disconnect the connector. Refer to DOOR, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- Installed location: under the instrument panel on the front passenger side
- Removing. Refer to INSTRUMENT PANEL .
- Engine Hood Contact Switch -F266-
- Contact switch, removing and installing. Refer to ENGINE COMPARTMENT LAMPS AND SWITCHES .
- Component location: on the latch
- Hood latch, removing and installing. Refer to HOOD LOCK, REMOVING AND INSTALLING .
